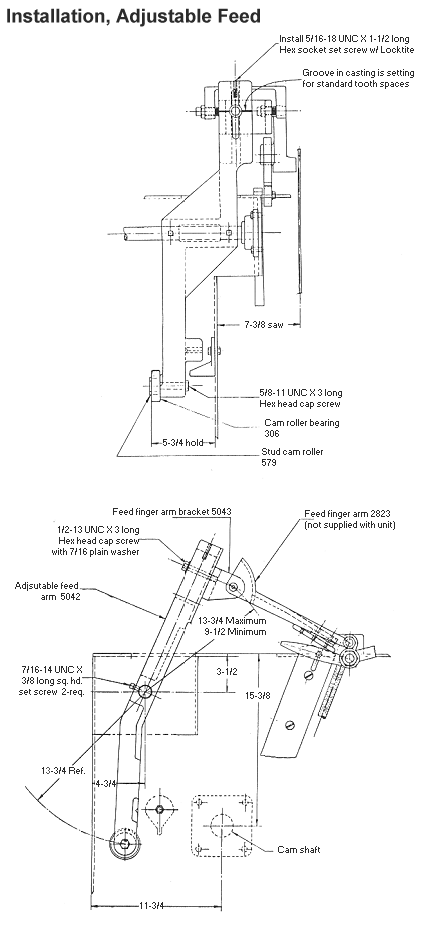

No. 25 CS PL Installation, Adjustable Feed

No. 25 CS Parts List - Installation, Adjustable Feed

306, 579, 5043, 2823, 5042

ADJUSTABLE FEED FINGER STROKE LENGTH CONVERSION ASSEMBLY:

The adjustable feed finger feature is supplied standard on all new machines. The items identified below are also available as a field installed up-grade for older No. 25 Sharpeners. Order Assembly No. 8742-ADD, consisting of: 306 bearing, 579 bearing stud, 5042 feed arm, 5043 feed finger arm mounting bracket, and one set of fasteners assemble.
