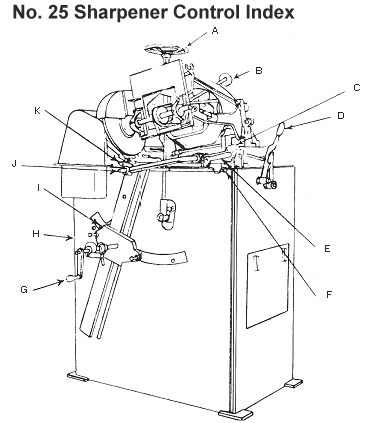

| A |
Hand wheel for adjusting amount of grinding in gullet, also to adjust for
grinding wheel wear. |
| B |
This hand wheel is for increasing or decreasing grinding wheel speed.
Minimum R.P.M. 1800 - Maximum R.P.M. 2600. |
| C |
Hand wheel for adjusting the amount of grinding on face of tooth. |
| D |
Lever for lifting or lowering grinding wheel head. |
| E |
Lever for locking saw clamp arm against saw. |
| F |
Adjustment for centering the saw under the grinding wheel. |
| G |
Handle to raise or lower saw when grinding. |
| H |
Latch for locking feed arm off feed cam (inside). |
| I |
Saw bar clamp adjustment for changing hook angle. |
| J |
Screw for adjusting amount of friction on saw when grinding. |
| K |
Adjustable feed finger track. |
