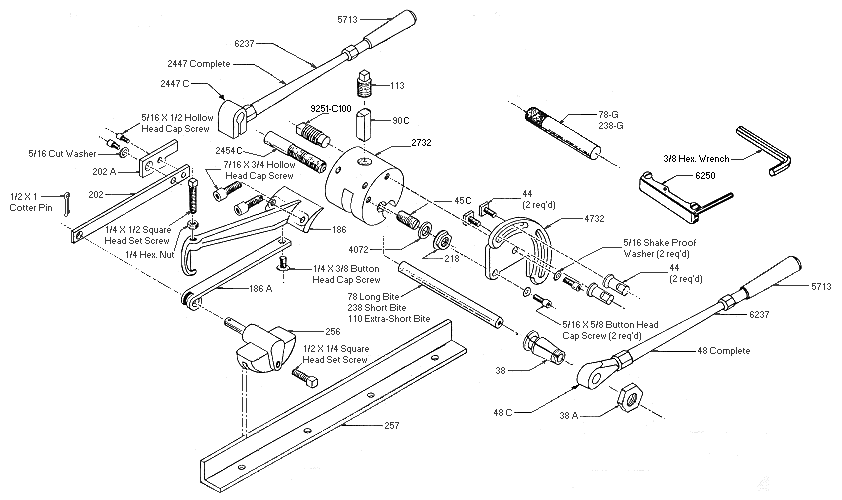

No. 9 Hand Swage (5/8" Die) For Circular Saws - Discontinued - Some Parts May Not Be Available
Part No. Name
38-SET Holder for Die with Nut 38A
38A Nut for 38
44 Stud for Stop Bracket (2 req.)
45C Carbide Tipped Clamp Screw (Stationary)
48 Lever for Die, complete
48C Clamping Socket only for Die Lever
78 Eccentric die (Long Bite)
78-G Anvil setting gauge for 78
90C Carbide Tipped Anvil
110 Eccentric die (Extra-Short Bite)
113 Top Screw for Anvil
186 Bench Arm
186A Spring for 186
202 Setting Gauge with Head 202A
202A Setting Gauge Head
218-SET Nut for 45C with Washer 4072
238 Eccentric die (Short Bite)
238-G Anvil setting gauge for 238 and 110
256 Controlling Ride
257 Guide Rail (one 20" sec.)
2447 Lever for Clamp Screw 2454, complete
2447C Split Clamping Head only for Clamp Screw Lever
2454C Carbide Tipped Clamp Screw (Moveable)
4072 Washer for 45C
4732 Stop Bracket
9251-C100 �" N F Socket Head Side Anvil Screw
5713 Plastic Handle (2 req.)
2732 Head
6237 Steel Shank only for Levers (2 req.)
6250 Socket Head Wrench Set
