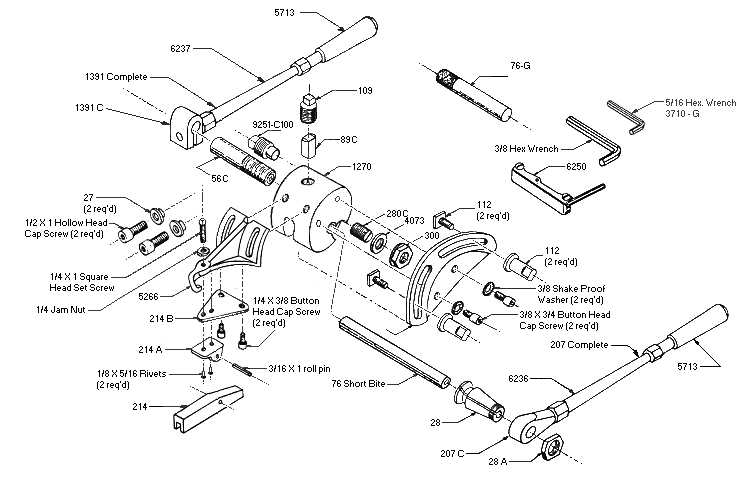

No. 7-G Hand Swage (7/8" Die) For Gang Saws - Discontinued - Some Parts May Not Be Available
Part No. Name
27 Ribbed Washers for 5266 (2 req.)
28-SET Holder for Die with Nut 28A
28A Nut for 28
56C Carbide Tipped Clamp Screw (Moveable)
76 Eccentric die (Short Bite)
76-G Anvil setting gauge for 76
89C Carbide Tipped Anvil
109 Top Screw for Anvil
112 Stud for Stop Bracket (2 req.)
207 Lever for Die, complete
207C Clamping Socket only for Die Lever
214 Front Guide Shoe complete with Spring and Saddle
214A Saddle only for 214
214B Spring only for 214
280C Carbide Tipped Clamp Screw (Stationary)
300-SET Nut for 280C with Washer 4073
1270 Head
1391 Lever for Clamp Screw 56, complete
1391C Split Claming Head only for Clamp Screw Lever
4073 Washer for 280
4730 Stop Bracket
9251-C100 ½" NF Socket Head Side Anvil Screw
5266 Front Guide Arm
5713 Plastic Handle (2 req.)
6236 Steel Shank only die Lever
6237 Steel Shank only for Clamp Screw Lever
6250 Socket Head Wrench Set
