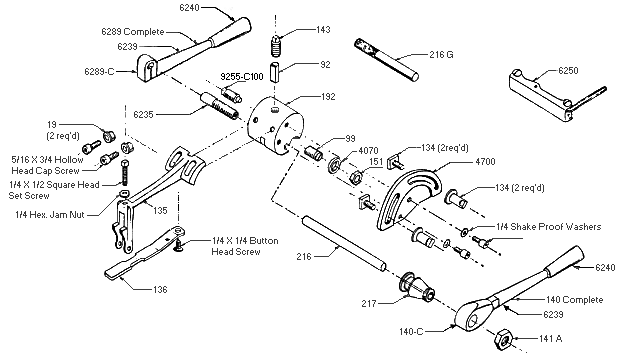

No. 1 Hand Swage (9/32" Die) For Band Saws
Part No. Name
19 Ribbed Washers for 135 (2 req.)
92 Anvil
99 Clamp Screw (Stationary)
134 Stud for Stop Bracket (2 req.)
135 Front Guide Arm
136 Front Guide Shoe
140 Lever for Die, complete
140C Clamping Socket only for Die Lever
141A Nut for 217
143 Top Screw for Anvil
151 Nut for 1424 with washer 4070
192 Head
216 Eccentric Die (Short Bite)
216G Anvil Setting Gauge for 216
217 Holder for Die with Nut 141A
4070 Washer for 99
4700 Stop Bracket
9255-C100 5/16" NF Socket Head Side Anvil Screw
6235 Clamp Screw (Moveable)
6239 Steel Shank only for Levers (2 req.)
6240 Plastic Handle (2 req.)
6250 Socket Head Wrench Set
6289 Lever for Clamp Screw, complete
6289C Split Clamping Head only for Clamp Screw Lever
