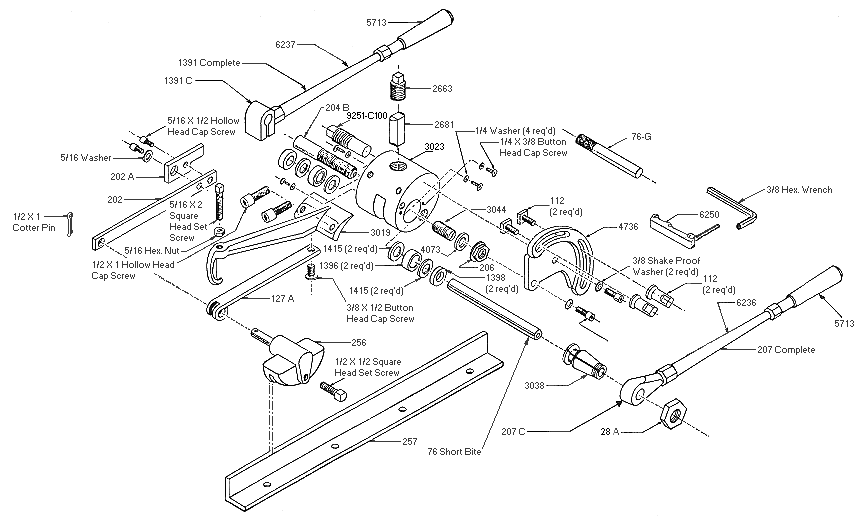

| Part No. |
Name |
| 28A |
Nut for 3038 |
| 76 |
Eccentric die (Short Bite) |
| 76-G |
Anvil setting gauge for 76 |
| 112 |
Stud for Stop Bracket (2 req.) |
| 127A |
Spring for 3019 |
| 202 |
Setting Gauge (with Head 202A) |
| 202A |
Setting Gauge Head |
| 204B |
Clamp Screw (Moveable) |
| 204C |
Carbide Tipped Clamp Screw (Moveable) |
| 206-SET |
Nut for 3044, with Washer 4073 |
| 207 |
Lever for Die, complete |
| 207C |
Clamping Socket only for Die Lever |
| 256 |
Controlling Rider |
| 257 |
Guide Rail (one 20" sec.) |
| 1391 |
Lever for Clamp Screw 204B, complete |
| 1391C |
Split Clamping Head only for Clamp Screw Lever |
| *1396 |
Roller Bearings (2 req.) |
| *1398 |
Centering Bush for Die (pair) |
| *1415 |
Felt Washer for Roller Bears (2 pr. req.) |
| 2663 |
Top Screw for Anvil |
| 2681 |
Anvil |
| 3019 |
Bench Arm |
| 3023 |
Head |
| 3038-SET |
Holder for Die with Nut 28A |
| 3044 |
Clamp Screw (Stationary) |
| 3044C |
Carbide Tipped Clamp Screw (Sta.) |
| 4073 |
Washer for 3044 |
| 4736 |
Stop Bracket |
| 9251-C100 |
½" NF Socket Head Side Anvil Screw |
| 5713 |
Plastic Handle (2 req.) |
| 6236 |
Steel Shank only for Die Lever |
| 6237 |
Steel Shank only for Clamp Screw Lever |
| 6250 |
Socket Head Wrench Set |
| * |
*Obsolete, replaced by and interchangeable
with 2 pt 7675 bearing assemblies. |
