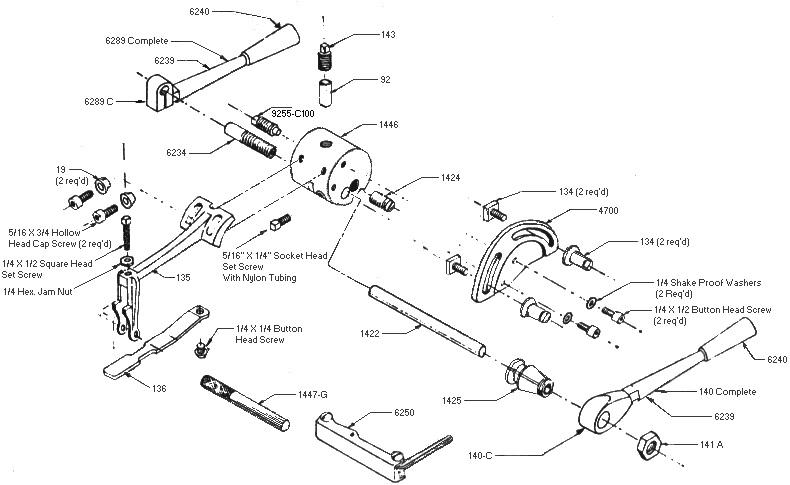

No. 0 Hand Swage (3/16" Die) For Band Saws
Part No. Name
19 Ribbed Washers for 135 (2 req.)
92 Anvil
134 Stud for Stop Bracket (2 req.)
135 Front Guide Arm
136 Front Guide Shoe
140 Lever for Die, complete
140C Clamping Socket only for Die Lever
141A Nut for 1425
143 Top Screw for Anvil
1421 Head
1422 Eccentric Die (Short Bite)
1422G Anvil Setting Gauge for 1422
1424 Clamp Screw (Stationary) smooth end
1425 Holder for Die with Nut 141A
4700 Stop Bracket
9255-C100 5/16" NF Socket Head Side Anvil Screw
6234 Clamp Screw, smooth end (Moveable)
6239 Steel Shank only for Levers (2 req.)
6240 Plastic Handle (2 req.)
6250 Socket Head Wrench Set
6289 Lever for Clamp Screw, complete
6289C Split Clamping Head only for Clamp Screw Lever
