Armstrong Shapers for Band, Gang and Circular Saws

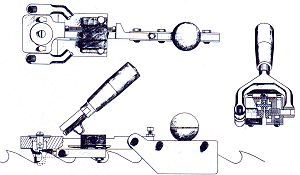

Cut-A-Way View of

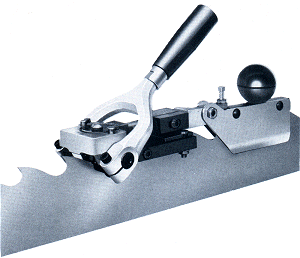

Armstrong Band Saw Shaper




  • Sturdy head eliminates breakage.
  • Heavy, independently adjustable, double-acting clamp screws easily set in any desired position.
  • Double-end solid handle imparts simultaneously even action to both sides of tooth.
  • Shaper is self-centering, providing balanced, even tooth points.
  • Simple, independent side die adjustment.
  • Position of tooth stop and dies prevent slipping under pressure.
  • Balanced for quick, easy, positive operation.
  • Quick, easy adjustable centering guides.
  • Hardened dies – refaceable many times.
  • Simple, dual side adjustment for point size control.
  • Dual-beveled dies – providing two working surfaces.
  • All adjustments positive and independent.
  • Carbide-tipped side dies available at extra cost for added uniformity and long wear.






Convenient socket head wrench set furnished with each Armstrong Swage or Shaper.




MANUFACTURING COMPANY
2135 NW 21st Ave.   Portland, OR 97209 USA
(503) 228-8381  Fax: (503) 228-8384
www.armstrongblue.com
Armstrong Shapers for Band, Gang and Circular Saws





Original Model Armstrong
Gang Saw Shaper
With convenient side handle to permit shaping close to tabs.






Original Model Armstrong
Bench Type Circular Saw Shaper
Supplied with rail, rider and wrench illustrated



For Automatic Swaging and Shaping

No. 84 Autopoint for fully automatic swaging and shaping of band, circular and gang saws. Brochures and price information available on request.



ORIGINAL MODEL SHAPER SELECTOR

Type of Saw

Gauge of Saw
(Under Average Conditions)

Recommended Shaper Number

Estimated Shipping Weight Pounds

For BAND SAWS

17 Ga. & Lighter

1

6

17 Ga. to 14 Ga.

2

11

14 Ga. & Heavier

 3 13

For GANG SAWS

17 Ga. to 14 Ga.

2G

11

14 Ga. & Heavier

3G

13

For Bench Type
CIRCULAR SAWS
(Log or Edger)

17 Ga. to 14 Ga.

5

18

14 Ga. & Heavier

4

18

For Riding Type
SHINGLE SAWS

17

1

6
