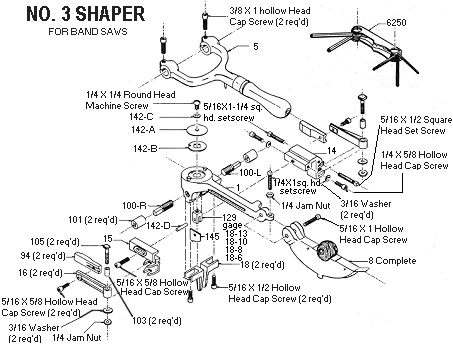

| Part No. | Name |
| 1 | Head |
| 1A | Liner for part 1 |
| 5 | Clamping handle complete |
| 8 | Hand guard, or tail piece complete |
| 14 | Hinge carrier (R.H.) with screws |
| 15 | Hinge carrier (L.H.) |
| 16 | Hinges (2-req.) |
| 18 | Centering guides (2 req.) |
| 94 | Side dies (2-req.) |
| 94C | Carbide tipped side dies (2-req.) optional at extra cost |
| 100-L | Clamp screw, LH |
| 100-R | Clamp screw, RH |
| 101 | Bushings for handle (2-req.) |
| 103 | Bushings for hinges (2-req.) |
| 105 | Bolts for hinges (2-req.) |
| 129 | Tooth stop holder complete with washers and pin |
| 129B | Square hole washer only |
| 142A | Spring washer only |
| 142C | Fiber washer only |
| 142D | Holder Pin only |
| 145 | Tooth stop |
| 5716 | Plastic handle |
| 6250 | Socket head wrench set |
| 6793 | Liner |
