No. 5700-G SHAPER PARTS LIST

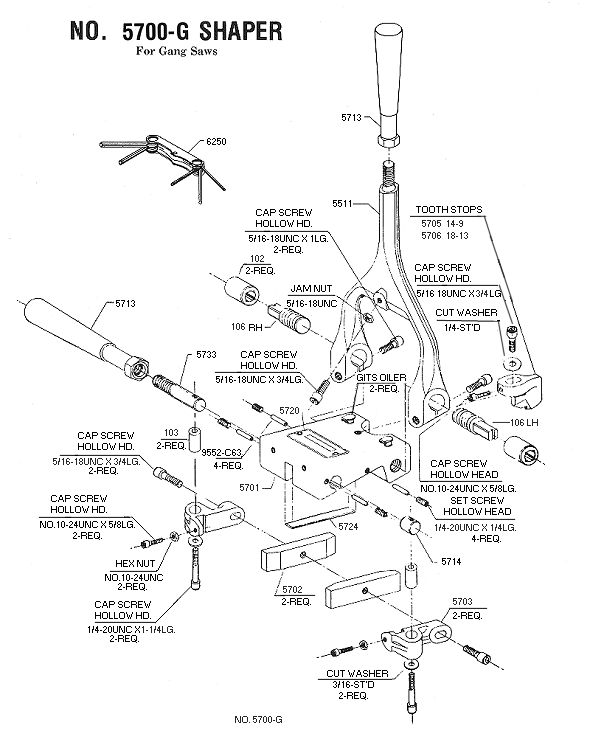

No. 5700-G Shaper
Part No. Name
18 Saw guides (pr.)
102 Bushing for handle (2 req.)
103 Bushing for hinge (2 req.)
106-L Clamp screws, left hand
106-R Clamp screws, right hand
5701 Head
5702 Side dies (2 req.)
5702C Carbide tipped side dies (2 req.) (OPTIONAL at extra cost)
5703 Hinge (2 req.)
5705 Tooth stop, 14-9
5706 Tooth stop, 18-13
5711 Clamping handle complete
5713 Plastic handle
5714 Short round nut (2 req.)
5720 Name plate
9552-C63 Wearstrip pin (4 req.)
5724 Wear strip
5733 Long round nut
6250 Socket head wrench set
