No. 5700-C SHAPER PARTS LIST

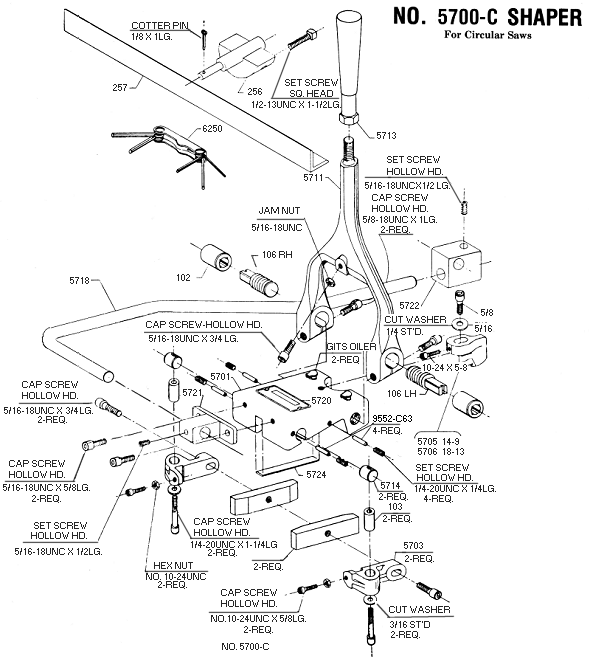

No. 5700-C Shaper
Part No. Name
18 Saw guides (pr.)
102 Bushing for handle (2 req.)
103 Bushing for hinge (2 req.)
106-L Clamp screws, left hand
106-R Clamp screws, right hand
256 Controlling rider
257 Guide rail (one 20" sec.)
5701 Head
5702 Side dies (2 req.)
5702C Carbide tipped side dies (2 req.) (OPTIONAL at extra cost)
5703 Hinge (2 req.)
5705 Tooth stop, 14-9
5706 Tooth stop, 18-13
5711 Clamping handle complete
5713 Plastic handle
5714 Short round nut (2 req.)
5718 Extension rod
5720 Name plate
5721 Bracket for extension rod
5722 Socket for extension rod
9552-C63 Wearstrip pin (4 req.)
5724 Wear strip
6250 Socket head wrench set
