No. 5700-B SHAPER PARTS LIST

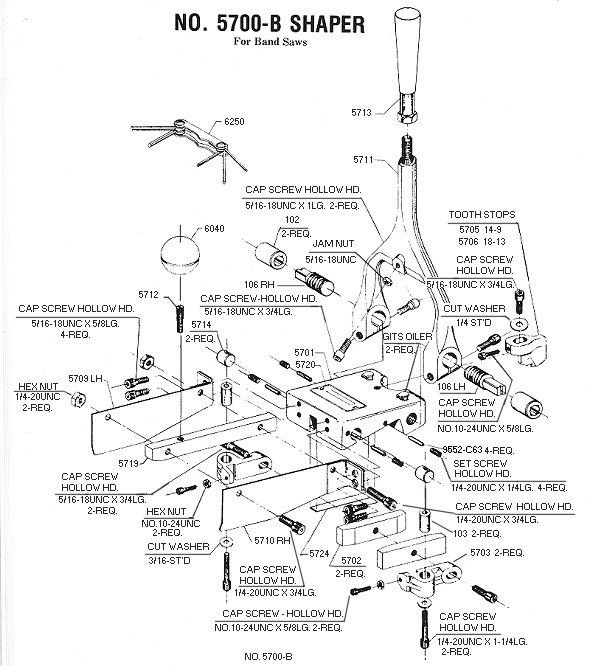

No. 5700-B Shaper
Part No. Name
18 Saw guides (pr.)
102 Bushing for handle (2 req.)
103 Bushing for hinge (2 req.)
106-L Clamp screws, left hand
106-R Clamp screws, right hand
5701 Head
5702 Side dies (2 req.)
5702C Carbide tipped side dies (2 req.) (OPTIONAL at extra cost)
5703 Hinge (2 req.)
5705 Tooth stop, 14-9
5706 Tooth stop, 18-13
5709 Tailpiece guard, LH
5710 Tailpiece guard, RH
5711 Clamping handle complete
5712 Offset stud
5713 Plastic handle
5714 Short round nut (2 req.)
5719 Tailpiece spacer
5720 Name plate
9552-C63 Wearstrip pin (4 req.)
5724 Wear strip
5736 Hand guard, complete assembly
6040 Ball handle
6250 Socket head wrench set
