No. 4 BSS - Sidewinder Feed Finger Arm Assembly

Sidewinder Feed Finger Arm Assembly

Click here for Sidewinder Installation Tool Video (7 Meg)


575-E, 1210, 573, 275, 12006, 12005, 4103, 203, 580, 13510-C, 8946-C13, 11873, 11875

SIDEWINDER COMPONENTS
Item	Qty	Description	Machine	Part No.
1	1	Feed Finger w/screws (hard tipped only)	PF,PF II,2,4,6 and 25	13472
		Feed Finger w/screws, swage saw, RH	PF,2,4,6 BSS	13671-R
		Feed Finger w/screws, blank, RH	4,6 BSS	13671-BR
		Feed Finger w/screws, swage saw, LH	PF, 2,4,6 BSS	13671-L
		Feed Finger w/screws, blank, LH	4,6 BSS	13671-BL
		Feed Finger w/screws	SidePro	13766
2	1	Shaft PN 13471	PF,PF II, 2,4,6,25 & SP	13672 Feed Cartridge repair kit
3	1	Compression spring PN 8946-C13
4	2	Bearing spacer PN13474
5	2	Bearing PN 13470
6	1	Cap screw PN 9060-C38
7	1	Clamp (swage saw only) PN13678	PF,PFII, 2,4,6 BSS	13737 (LH)* 13738 (RH)* feed point replacement kit
8	1	Screw (swage saw only) PN 9028-C44
9	1	Carbide feed point* (swage saw only) (not available seperately - in kit form only)
10	1	Carbide blank (no point - swage saw only)	PF,PFII, 2,4,6 BSS	13673-B

*NOTE: Complete cartridge assembly contains onr feed point while feed point replacement kit contains two.

PROFILER, PROFILER II SIDEWINDER CARTRIDGE


2,4,6 BSS SIDEWINDER CARTRIDGE


Complete Cartridge Assembly
Part No.	Machine	Description
15003	2,4,6 BSS % 25 CSS	RH sharpener, hard tipped
13518	2,4,6 BSS	LH sharpener, hard tipped
13731	PRO-Filer	LH only, hard tipped
13732	ProFiler, ProFiler II	RH only, hard tipped
13733	2,4,6 BSS	RH sharpener, swage tooth
13733-B	4,6 BSS	RH sharpener, blank
13734	2,4,6 BSS	LH sharpener, swage tooth
13734-B	4,6 BSS	LH sharpener, blank
13735	PRO-Filer	LH only, swage tooth
13736	PRO-Filer	RH only, swage tooth

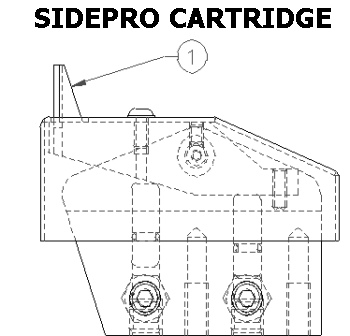

13748	SidePro	LH or RH, all
