In 1998 the arbor for No. 2 Armstrong sharpeners were upgraded. This new 1" diameter arbor and flange is machined from a single piece of steel. It is much more rigid and precise than the original style arbors, which had the flange pressed onto a 3/4" diameter arbor. The heavier arbor is now standard on all new No. 2 Sharpeners and can be supplied as an upgrade for older machines. The original style arbors (P/N 2578 and 2577) are no longer available.

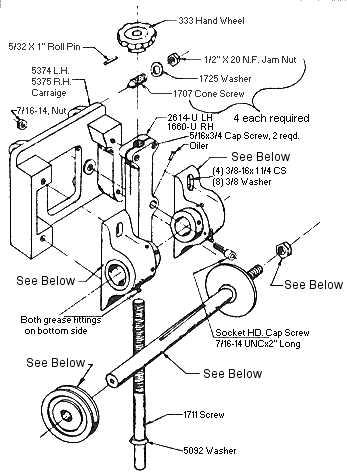

Part Number 15143 Right Hand Arbor Assembly / 15144 Left
hand Arbor Assembly
To order parts for sharpeners made since 1998 (or to upgrade earlier model sharpeners), order these parts:
1 P/N 15143 Arbor assembly for right hand sharpeners or
1 PN 15144 Arbor assembly for left hand sharpeners
PLUS
2 P/N 15132 pillow block bearings (for 1" diameter arbor)
1 P/N 15142-C Poly-V drive upgrade (the new arbors cannot be used with
the old style variable speed pully and V belt drive)
Pillow blocks for older style machines with 3/4" arbors are available. Order P/N 5376 pillow blocks (two required) from Armstrong.
