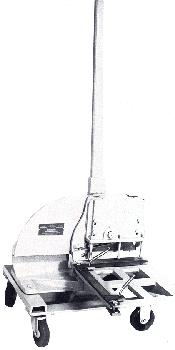

Armstrong Shear for Band and Gand Saws


Armstrong shears cut through a variety of metals including saw steel, iron, sheet steel, brass and copper. The shear’s heavy-duty construction and unique design ensures smooth, accurate cutting through even the heaviest gauge saws, making the shearing operation fast and easy.
ARMSTRONG SHEARS FEATURE:
  • Two models, 14" and 18".
  • High quality shear blades provide four cutting edges that may be resharpened many times before new ones are required.
  • Clear visibility for accurate positioning of the saw.
  • Locking screws hold the saw firmly in place.
  • Heavy-duty frame resists tendency to spring.
  • Unique "ratchet system" used to create a tremendous leverage on the shear knife.
  • Comes equipped with adjustable "fence" for shearing and cross cutting.

Shear trucks are supported on all four corners for extra stability.




MANUFACTURING COMPANY
 5504 S 11th St, Ridgefield, WA 98642 USA
(503) 228-8381  Fax: (503) 228-8384
www.armstrongblue.com
  Wt. Truck Crate Wt. Ocean Crate Cubic Feet

14" Shear complete with truck (Order part no. 4771-C1)

 500 lbs. 650 lbs. 31

18" Shear complete with truck (Order part no. 2238-C1)

 700 lbs. 800 lbs. 32

HYDRAULIC OPTION AVAILABLE

An air-driven hydraulic unit can be installed on either size shear. These units generate 10 tons of pressure to quickly cut through the heaviest band or sash gang saw plates. Shears supplied with this hydraulic option operate on 80 to 100 PSI and can be either hand or foot activated. The smooth cutting, labor saving action of the hydraulic saw shear offers big advantages for busy saw factories, saw shops and sawmills.

SAFETY GUARDS: Armstrong hydraulic shears do not include safety guards. We recommend that safety guards be manufactured to fit each individual shear depending on location and use. Under no circumstances should the hydraulic powered shear be operated without safety guards.
